Product Details:
Payment & Shipping Terms:
|
| Material: | Clear Polyester Film Roll | Bonding Function: | High Temperature Resistant Adhesive |
|---|---|---|---|
| Application: | Construction, Woodworking, Footwear & Leather, Composite | Width: | 1260/1270/1280MM |
| Thickness: | 35/50MIC | Length: | 1000M |
| Producr Name: | High Polymer Adhesive Film For Aluminum Composite Panel High Polymer Adhesive Film | ||
| High Light: | temporary surface protection films,pe protective film |
||

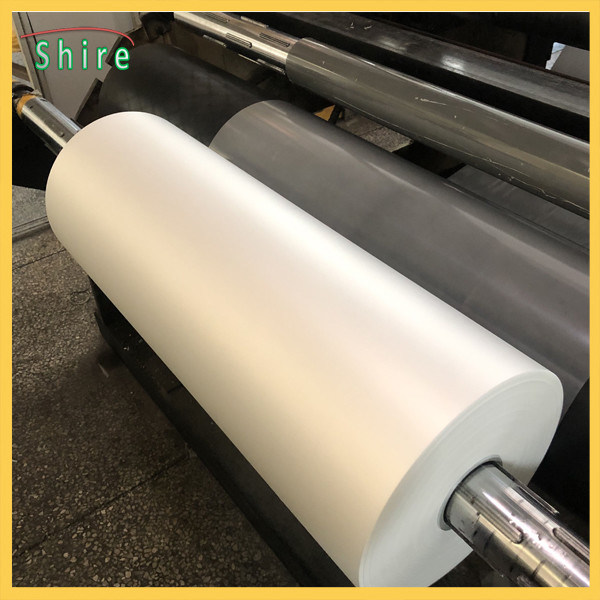

High Polymer Adhesive Film for Aluminum Composite Panel High Polymer Adhesive Film
Description
Shire High Polymer Adhesive Film are multi-layers, they are able to help bond together two different materials by heating and pressing. After bondage, it has good resistance to elements and excellent lasting peeling strength, being able to provide more choices of combinations of macromolecule adhesive films when customers develop and design new products. Our products suitable to bond wooden fibers, fabrics, plastic, aluminum and steel, etc, have been widely used in industries like construction, auto, furniture, garments, shoe and so on. Our products have been exported to Europe, Southeast Asia and gained good reputation.
| SHIRE High Polymer Adhesive Film | ||||
| Physical Properties | ||||
| Item | Unit | Testing Method | Thickness 0.035mm | Thickness 0.05mm |
| Melt Flow Rate | g/10min(190ºC) | ASTM D1238 | 2.3 | 2.3 |
| Density | G/m³ | ASTM D1505 | 0.92 | 0.92 |
| Tensile Srtength at Break | Mpa | GB/T13022-1991 | ≥7 | ≥10 |
| Elonngation at Break | % | GB/T13022-1991 | ≥300 | ≥300 |
| Hardness | Shore D | ASTM D2240 | 45 | 45 |
| Vicat Softening Point | ºC | ASTM D1525 | 100 | 100 |
| Melting Point | ºC | DSC | 126 | 126 |
| Peeling Strength | M/mm(180°) | GB/T17748-1999 | ≥5 | ≥7 |
| Width | mm | GB/T 6673-1986 | ±5 | ±5 |
| Thickness | mm | GB/T 6672-1986 | ±0.005 | ±0.005 |
| Length/roll | Meter | GB/T 6673-1986 | ±20 | ±20 |
| Color | - | Self Method | clear/bright | clear/bright |
| Inner Diameter | Фmm | 70-90 | 76.5 | 76.5 |
Application Way
Shire High Polymer Adhesive Film are developed for metals(Aluminium) plastic composite panel. This PE high polymer adhesive film have two side: one side bonds metals, another side bonds plastic. High polymer adhesive film has non-toxic, non-volatility of solvent; high efficiency, can be composited by roller continuously; saving energy, co-extruding film with plastic can use residue temperature of plastic to satisfy the goal of saving energy.
Features
Pictures
