Recyclable PE 150 Microns Aluminum Composite Panel Protective Film

Recyclable PE 150 Microns Aluminum Composite Panel Protective Film
Recyclable PE 150 Microns Aluminum Composite Panel Protective Film

Large Image :  Recyclable PE 150 Microns Aluminum Composite Panel Protective Film

Product Details:
Place of Origin: CHINA
Brand Name: Shire
Certification: SGS,MSDS
Model Number: Shire-19044
Payment & Shipping Terms:
Minimum Order Quantity: Without Logo Prining :5000 sqm / With Logo Printing:10000 sqm
Price: Negotiable
Packaging Details: Paper/PVC/PP Packing core +Bubble Film+kraft paper+pallet
Delivery Time: 15-20 Days After get the Deposit
Payment Terms: L/C, T/T
Supply Ability: 300,000 Square Meters per Day
Detailed Product Description
Material: Polyethylene (PE) Glue: Water-based Acrylic Glue
Thickness: 25-150 Microns Width: 50MM-2100MM
Length: 15-1000 M Adhesive: 10-500 G/25mm
Prodect Name: Coated Aluminium Stainless Steel Panel Metal Surface Protection Film Processing Type: Blow Molding
Endurance Expectation: 6 Month Payment Terms: 30% TT Advance,the Balance Against The Copy Of B/L
High Light:

150 Microns pe protective film

,

2100MM width pe protective film

,

1000m polyethylene protective film

coated aluminium stainless steel panel metal surface protection film



Range of use


Aluminum products :aluminum composite panel,aluminum section materials, aluminum sheet, fluorine- carbon panel

Steel products: stainless steel panel, stainless steel kitchenware, colorful steel plate

Furniture: fireproof panel, decorated panel, security door, floor, scutcheon, electrical appliance

Glass: common glass, organic glass, coated glass

Other products: polycarbonate sheet,plastic material,stone material,auto lamp,instrument and apparatus, no glue self –adhesive film, etc.



Function


Our covering film can protect the surface of high-glossy materials such as Aluminum Composite Panel  stainless, aluminum sheet, steel, glass and plastic from damage, contamination, corrosion and scratch.

1)Film for aluminum composite panel ,aluminum sheet surface
2)Film for air-conditioner aluminum frame & steel panel.
3)Protective film for glass building and construction
4)Film for stainless steel products


Advantage


  • Durable, recycable, health & safe
  • Applied to stainless steel, aluminium, copper or brass, whether the surfaces are mirroed, fine frosted, coarse-sand blasted, coarse-grain forested, or pre-painted
  • Provide protection during drawing, stamping, bending, cutting, roll forming, storing and transportation.
  • Easy to apply & remove, no adhesive residue after removal
  • Stable adhering capacity




Directions For Use




Usage Aluminum Composite Panel
Base Material Polyethylene (PE)
Glue Water-based acrylic glue/ solvent-based acrylic glue / Natural rubber
Color Transparent, blue, white, black and white, green and so on.
Thickness 25-150 microns Widely used 35/45/50/70/80/100 microns
Width 50-2100 mm Widely used 1000/1100/1220/1250 mm
Length 30-2000 m Widely used 200m, 500m, 100m
180˚ Peel Strength 20-500 g/25mm Widely used 150/200/250/350 g/25mm
Tensile Strength Trasv> 8N/25mm
Longi> 15N/25mm
Elongation Trasv> 300%
Longi> 180%
Print Up to 5 colors





Production Process


Brand new good quality PE granules from Sinopec

Blowing

Thickness test 1

Elongation test 1

Tensile strength test 1

PE film with good elongation and tensile strength

Coating and drying

Semi-finish protective film

Adhesion test 1

Aging test 1

Curing

Finished protective film

Thickness test 2

Adhesion test 2

Aging test 2å

Elongation test 2

Tensile strength test 2

Goods ready for packing and shipping

Pictures

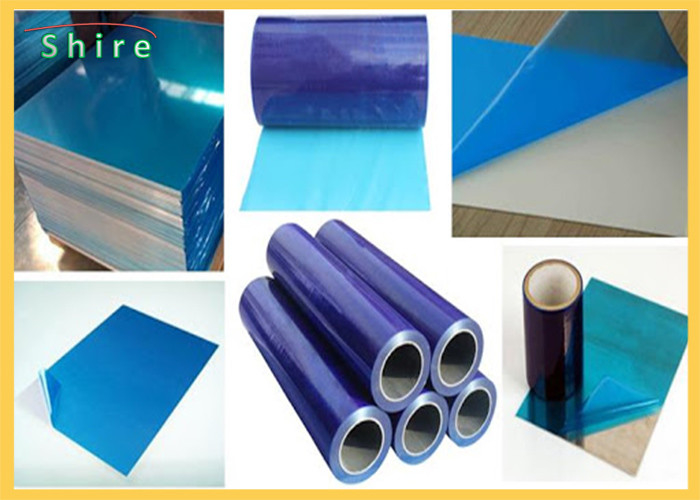

Recyclable PE 150 Microns Aluminum Composite Panel Protective Film 0
